Hello,
Le 19/05/2020 à 12:26, tien.dang a écrit :
> Dear all,
> As title, Can I custom Mux and Demux block to have more than 32 ports, for
> example: 64 ports as I need.
> I try to re build source code base on Git repos but meet so many errors.
> Thanks
> Tien Dang
I am not an xcos user, but what about the following proposals:
* use several MUX whose outputs are branched to another MUX. The
output of this last one should be equivalent to the one of a big
MUX. Shouldn't it?
This "2-layer MUX set up" allows to "concatenate" up to 31*31 = 961
input channels, and to "split" the positioning of blocks of inputs
in a more manageable way than with a single huge MUX block.
Couldn't a MUX be considered as a columns concatenator, each column
being a separate signal? So, concatenators might be nested in this way.
* To build a big DEMUX, a somewhat symetric proposal:
o from the single input, extract some ranges of channels with one
or several EXTRACTOR blocks, with at most 31 bundled channels in
the single output.
o put a DEMUX after each EXTRACTOR, to split their channels as as
many outputs.

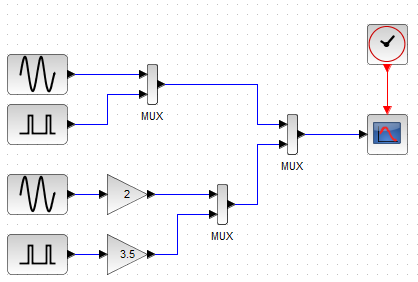

These naive proposals should be tested. The 2-layer MUX setup looks to
work when the final output is connected to a simple scope: then there
are as many curves as primary inputs.
Could this match your requirements?
Regards
Samuel
